Garbage Chute Systems

Manual garbage collection in high rise buildings, commercial establishments & malls is a tough job owing to the height of these buildings. It involves extensive use of manpower to collect the garbage from door to door. It needs collecting trolleys which are moved through the passages & elevators spreading odour & nuisance. To ease garbage collection, Garbage Chute Systems are installed in such buildings where garbage is collected centrally at one point & with ease. We are the manufacturers & suppliers of Garbage Chute Systems based in Pune.

Key features of our Garbage Chute Systems :

» Customization as per customers need in Size, Thickness & Quality

» Manufactured & Installed in India as per IS 6924 : 2001 & NBC 2016, BS 1703 : 2005, & NFPA 82.

» Intake doors are 90 min fire rated as per IS 3614 (Part 2);

1992 from Building Fire Research Centre, Mysore & self closing.

» Manufactured in stainless steel for good quality & long life.

» Full welding of the ducts along the length.

» Totally auto operated by SMART panel, requires no human intervention.

» Daily compulsory cleaning by self-operating sanitation system.

» Phenyl dosing at the top only once a month, not daily.

» Exhaust vent at the top with minimum 30 air changes/ hour.

» Impact absorber at the bottom to protect the bins from damage by impact.

» Supported on MS galavanised brackets fastened by anchor fasteners on RCC structures.

» Ducts are beaded / grooved for proper telescopic joint & clamped to make it water / smoke proof.

» Garbage trolleys of 240 / 360 / 660 / 1100 Litres as per requirement.

» Brush cleaning systems available on request.

» Sound deadening paint can be applied for high rise appartment.

» Fire sprinklers on the alternate floor to control fire immediately.

» Discharge end fire doors.

» Advanced options available on request.

» Non chemical type odor control systems with zero recurring cost.

» Low cost options available on request.

» Muncipal regulations require that garbage is segregated into “Dry” & “Wet”

» Utilizes one chute to facilitate segregated garbage collection.

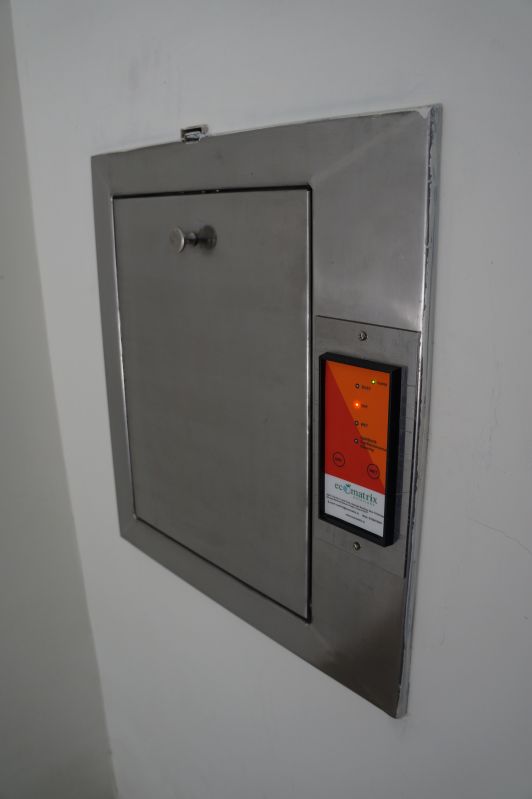

» Doors Interlocking for single user concept.

» Normally, doors are locked with electrical latch.

» Operation, Maintenance & Cleaning modes for user convenience.

Operation Details :

• Press “Dry” or “Wet” button
• All other doors remain locked with a “Busy” indicator. The garbage room flap door rotates to convert  the chute to its respective mode.
• The garbage hopper is unlocked for the user. User can manually open the hopper and drop the garbage bag.
• When the hopper is automatically closed, the system is reset for the next use.

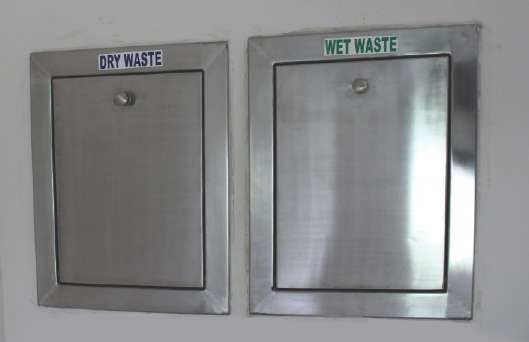

» Muncipal regulations require that garbage is segregated into “Dry” & “Wet”

» Two dedicated chutes to facilitate segregated garbage collection.

» Doors Interlocking for single user concept is also possible.

» No waiting time for the user.

» Ease of use & maintenance.

» Suggested for high rise apartments.

Provisions for odor control :

» Compulsory Cleaning everyday through automatic Sanitation system.

» Exhaust fan with self timer for periodic ON/OFF operation.

» Brush Cleaning System (Optional) available on request.

» Odor Control System (Optional) for garbage room available on request.

We also supply following types of chutes :

1. Laundry/ Linen Chutes for hotels and Hospitals.

2. Bio - Medical waste chutes for Hospitals.
