Water Plants

Softeners are used to remove the calcium & magnesium hardness from the water. Calcium & Magnesium salts are present in all water resources & must be removed in order to mate the water suitable for end use. Softeners replace calcium & magnesium ions with sodium ions thereby removing the hardness from water. Softeners are often used in industries, hospitals, residential complexes to make the water usable. Softeners are required for cooling towers, boilers, chillers, textile dying, hospitals & pharma applications.

We manufacture & supply above Filters & Softeners in MS coated with epoxy paint, FRP lining or rubber lining, Stainless Steel or FRP vessels as required by the application.

MBBR is one of the most widely used aerobic type sewage treatment technique. Sewage is collected & fed to a reactor consisting of PP media under the influence of air supplied at the bottom of the reactor tank. The aerobic bacteria present in the reactor thereby consumes the organic part of the sewage thereby reducing the oxygen demand. The sewage is further passed through tube settler to facilitate solid liquid separation. Clarified water is collected, disinfected & filtered with PSF & ACF. Sludge is sent to sludge dewatering system. Our MBBR has following important characteristics:

» Compact Design.

» No Sludge Recyclet.

» Air piping of MS in the open & UPVC in the submerged portion.

» Possible in open, underground & basements.

» Water can be reused for gardening & flushing.

Water contains dissolved solids which impart various characteristics to the water. These dissolved solids are salts of various ions like Sodium, Magnesium, Calcium, Chlorides, Sulphates etc. In many applications, these salts should either be completely removed or reduced to make the water usable. Reverse Osmosis is used to remove these salts from the raw water using semi permeable membranes called Reverse Osmosis Membranes. Water is pressurized again these membranes where water passes through the membrane to form permeate stream & salts are reacted to form another stream concentrated with salts called a reject stream. We manufacture & supply high quality Reverse Osmosis plants as per our client's needs suitable to their applications.

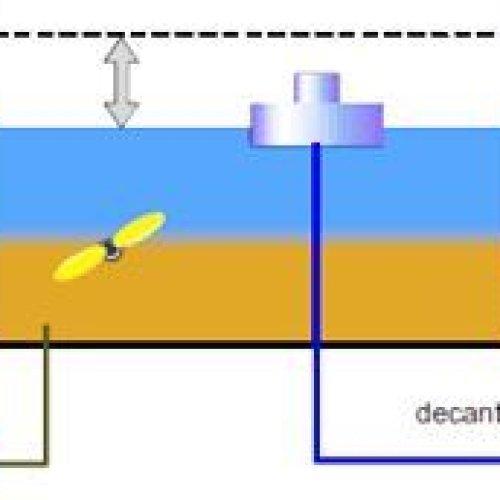

SBR type STP works on the principle of batch treatment of the sewage. Sewage is collected & fed to the reactor in 4 or 5 batches. Air is supplied & the completed aerobic process takes 2 hrs per batch. Once aeration is finished, the sewage comes to a stand-still position so that all suspended solids settle at the bottom thus clarifying the water. Clarified water is then decanted out to be collected In the clarified water tank. This water is further disim fected, filtered & stored or drained. SBR has following features :

» Automatic operation of the reactor controlled by a PLC.

» Single Tank Operation.

» No media addition / replacement.

» Intermittent operation so less maintenance.

» Low sludge yield, typically once in 10-12 days.

» Possible In open, underground & basements.

» Water can be reused for gardening & flushing

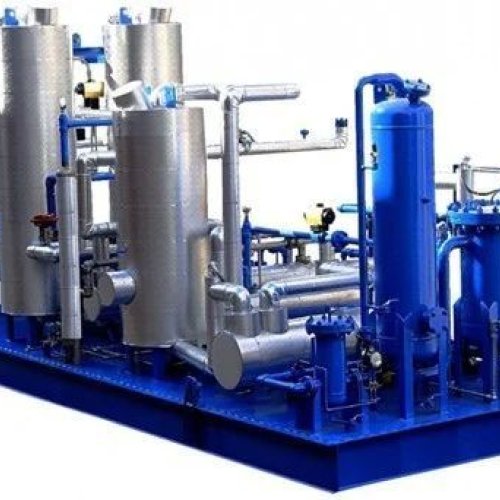

Wastewater Treatment before its dispcsal & its recycle has become an important these days. With growing population & diminishing fresh water resources, water recycling has become the need of this hour. We manufacture & supply Sewage Treatmert Plants, Greywater Treatment Plants & Effluent Treatment Plants to our clients. Traditional technologies are combined with latest advancements to improve the quality of the water to make it recy clable at minimum running costs. We always maintain best engineering practice & our plants will always have following advantages :

» Compact designs.

» Integration of old & modern technologies.

» Low power consumption. Possible in open, underground & basements.

» Can be modified with automation to minimize human efforts

» Can be supplied as Packaged or Pre fabricated if required.

» We have in house fabrication facility & we specialize in manufacturing  & supply of packaged type water & Wastewater Treatment Plants to our customers.

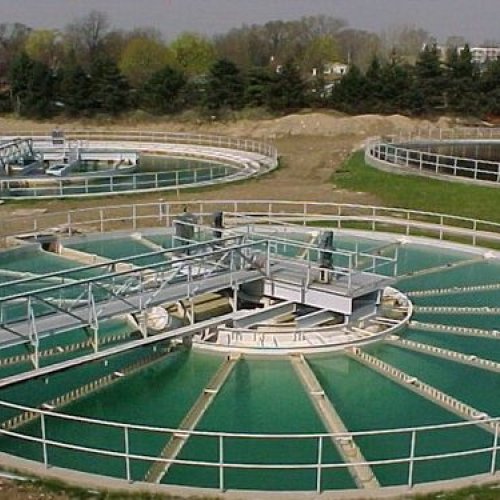

Water is life & we cannot survive without it. However, naturally available

water in rivers, lakes, wells, bore wells etc may not be suitable for direct

use. The feed or raw water has different characteristics & it needs different

solutions to purify the same. We understand this & hence we provide

solutions to our customers which are specific to them. Water contains

floating, suspended, colloidal & dissolved particles which need to be

removed from the water before it can be used for any particular applica -

tion. Depending upon the end use of the water, we manufacturer &

supply the following...
